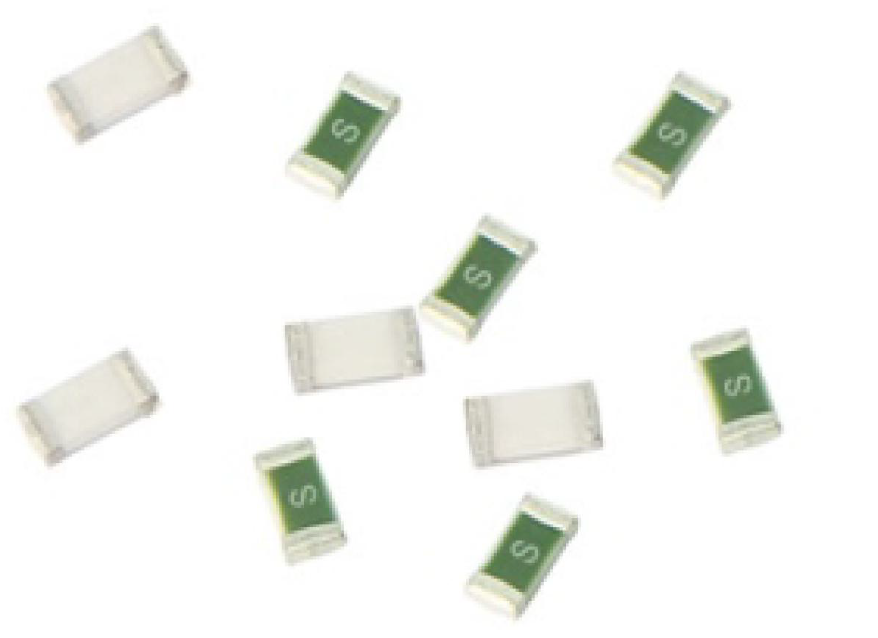

  5. SC0603慢斷系列
Product Name Rated Voltage
DC (V)		 Rated
Current (A)		 Breaking
Capacity (A)		 Typical Cold.
Resistance (mOhms)		 Typical Voltage
Drop (mV)		 Typical Pre-Arcing
I2t (A2Sec)		 Data Sheet
06 100.1 63 1 50 240 310 0.035
06 100.0.25 63 0.25 50 3100 1435 0.0012
06 100.0.75 63 0.75 50 440 550 0.015
06 100.0.5 63 0.5 50 1000 750 0.005
06 100.0.375 63 0.375 50 1600 1250 0.0028
06 100.1.5 63 1.5 50 125 250 0.08
06 100.2 63 2 50 68 17 0.16
06 100.2.5 63 2.5 52 52 200 0.29
06 100.3 63 3 50 34 155 0.32
06 100.3.5 32 3.5 50 22 130 0.54
06 100.4 32 4 50 20 100 0.95
06 100.5 32 5 50 13 95 1.80
06 100.6 32 6 50 8.5 80 2.9
06 100.7 32 7 50 6.5 80 3.5
06 100.8 32 8 50 5.3 75 4.8
